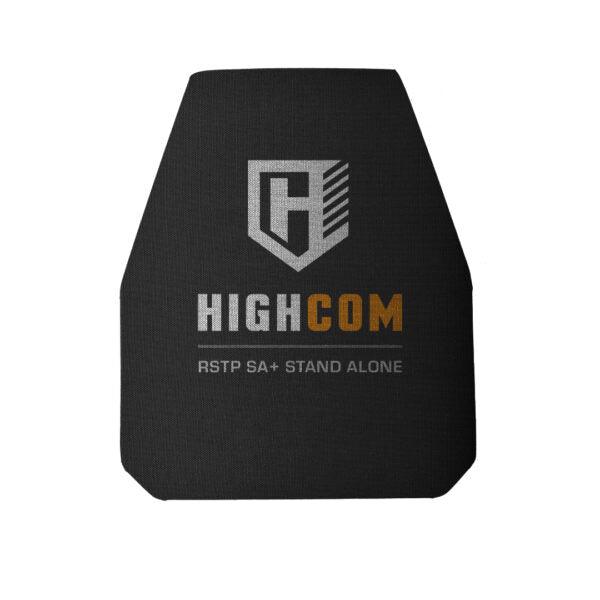

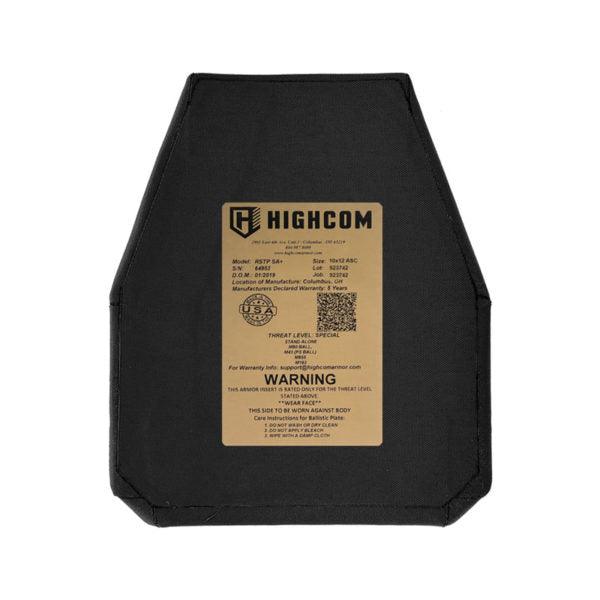

Guardian RSTP SA+ | HighCom Armor Set

ABOUT

The Guardian RSTP SA+™ (Rifle Special Threat Plate Stand Alone) is a multi hit, lightweight, high performing rifle special threat stand alone rifle plate. Engineered with a ceramic strike face and PE backing, the RSTP SA+ has been independently tested by an NIJ approved laboratory according to the NIJ standard of protection (MODIFIED SAPI).

SPECIFICATION

Protection: Rifle Plate Special Threat and Multi-Hit Capable Stand Alone
NIJ Standard 0101.06 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06 (modified SAPI)
Material: Ceramic with UHMWPE backing
Thinness: 0.90”
Exterior Cover: 1000D Cordura®, Textured Nylon

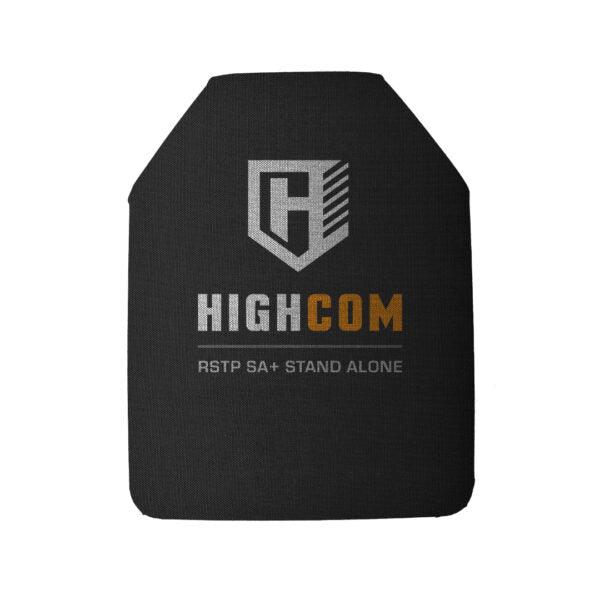

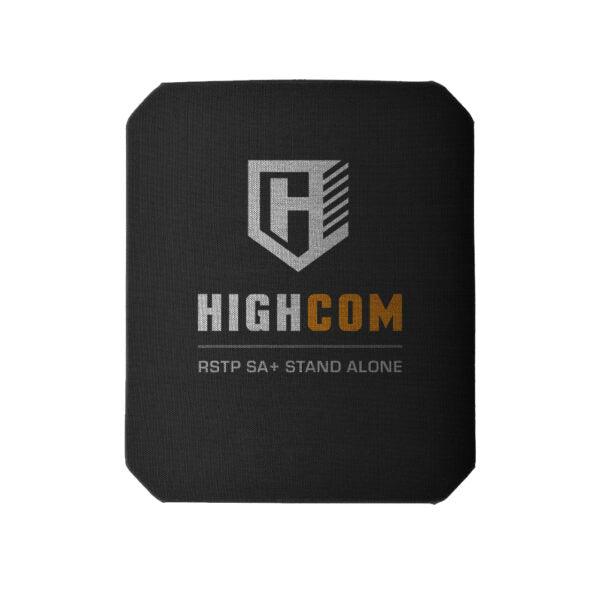

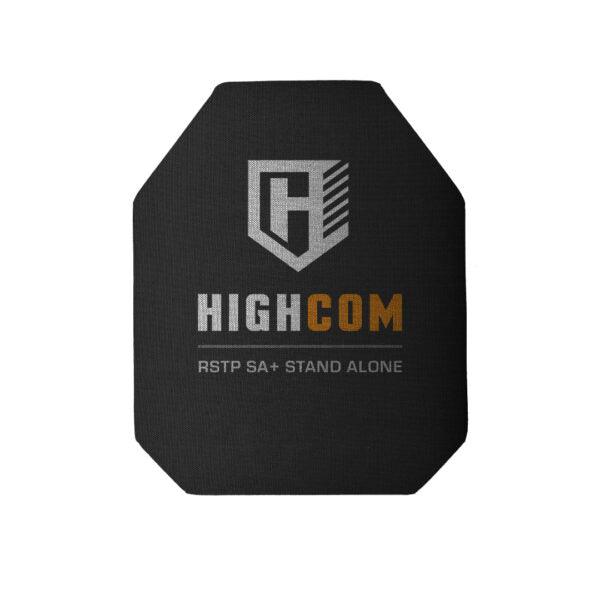

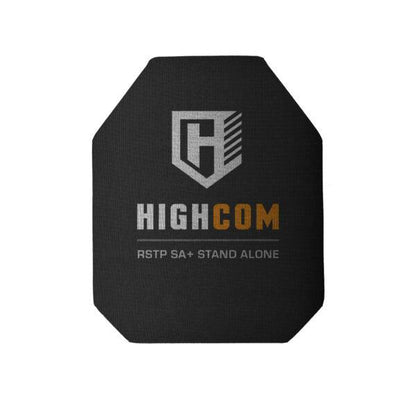

Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship

BALLISTIC ROUNDS TESTED

PROTECTION	STANDARD	WEAPON	PROJECTILE	GR	VEL FT/S	VEL M/S	(+/- FT/S)
SA	NIJ 0101.06	Rifle	7.62 mm FMJ, Steel Jacketed Bullets (M80)	147	2780	847	(+/- 30)
SA	DEA 2017	Rifle	7.62 x 39mm Mild Steel Core	123	2400	731	(+/- 50)
SA	Special	Rifle	5.56 x 45mm M855 (Green Tip)	62	3100	945	(+/- 50)
SA	Special	Rifle	5.56 x 45mm M193	55	3250	991	(+/- 50)
