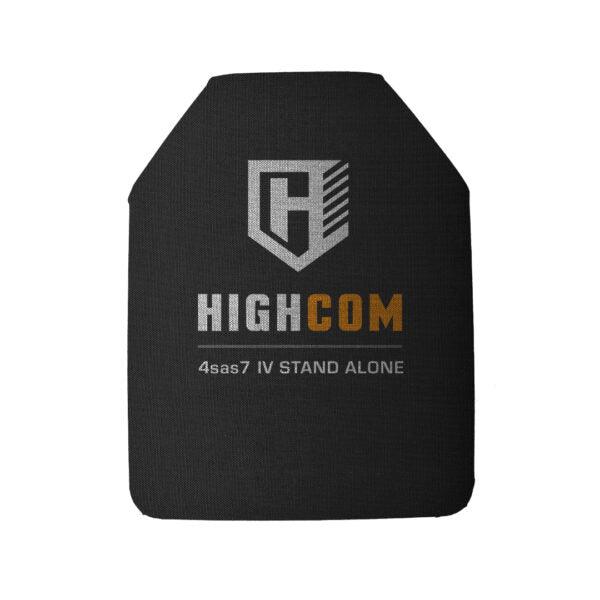

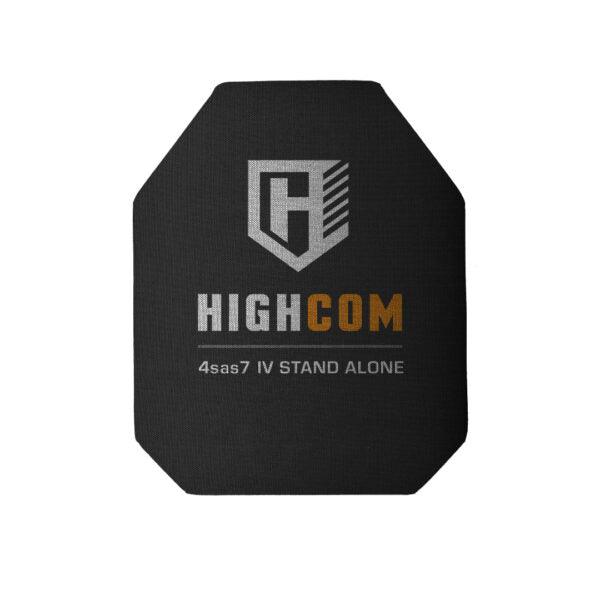

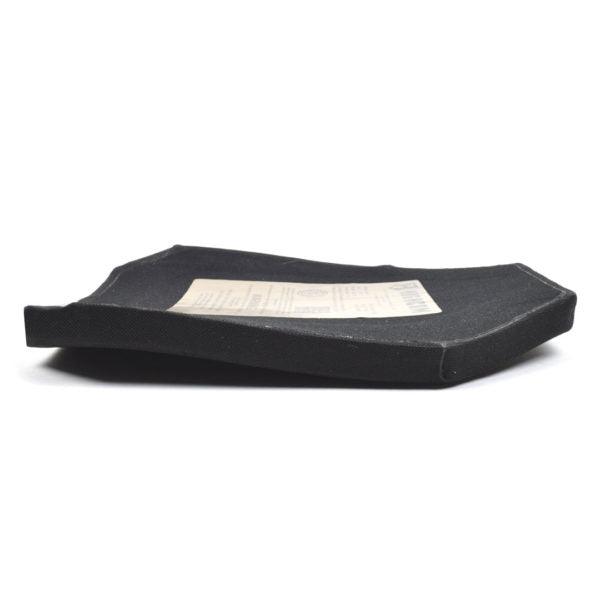

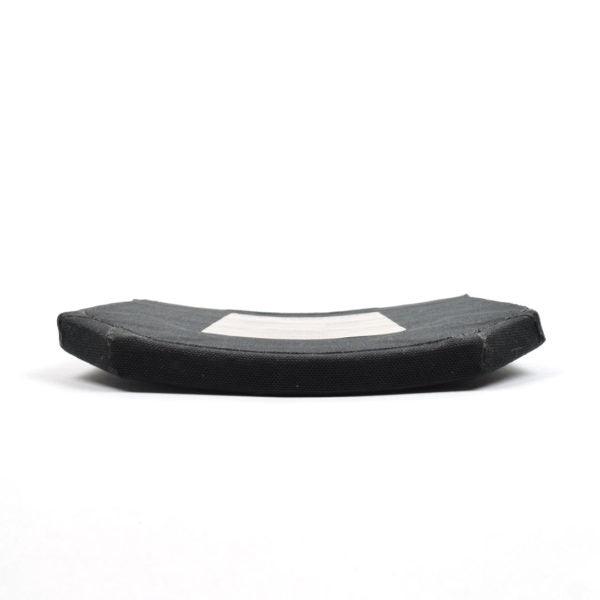

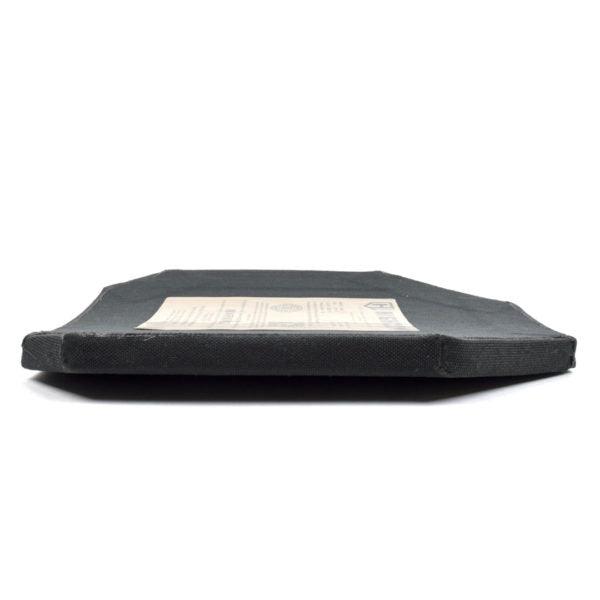

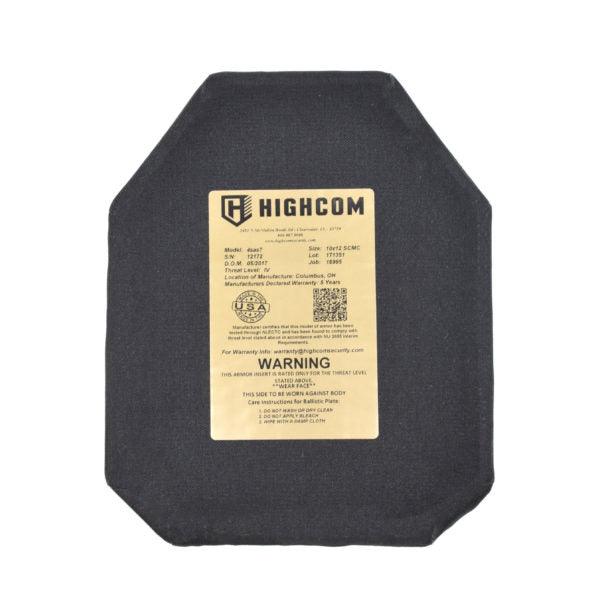

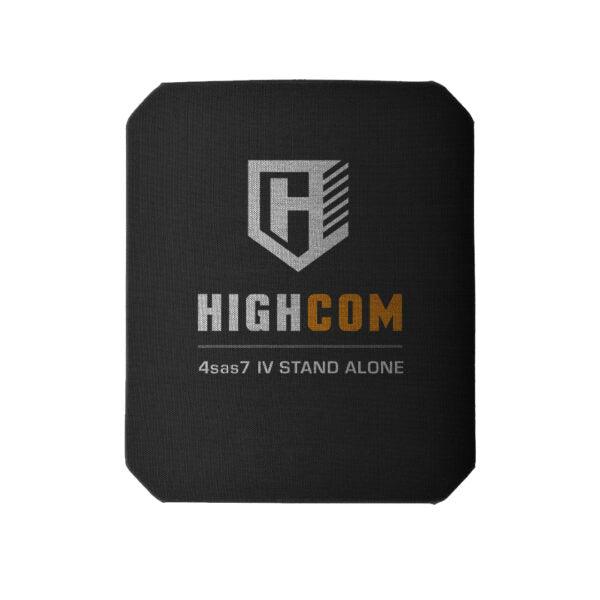

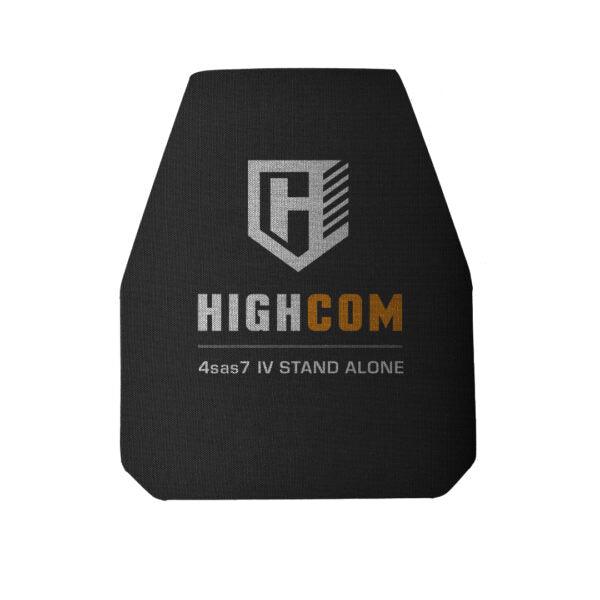

Guardian 4sas7 | HighCom Armor Set

ABOUT

The Guardian 4sas7™ is a cost effective level IV stand alone plate providing armor piercing protection. Engineered with a ceramic strike face and PE backing, the 4sas7 is certified compliant by NIJ to NIJ Standard 0101.04 (2005IR).

SPECIFICATION

Protection: Level IV Stand Alone Armor Piercing
NIJ Standard 0101.04 (2005 IR) CERTIFIED: This product is NIJ 0101.04 (2005 IR) compliant “Certified” by NIJ
DEA: Hard Armor Protocol Compliant
RST: Rifle Special Threats Validated
Material: Ceramic strike face composite backing
Thinness: 0.75”
Exterior Cover: 1000D CORDURA®, Textured Nylon
Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship

BALLISTIC ROUNDS TESTED

STANDARD	WEAPON	PROJECTILE	GR	VEL FT/S	VEL M/S	(+/- FT/S)
NIJ 2005 IR	Rifle	.30 Caliber Armor Piercing (AP) Bullets (M2 AP)	166	2880	878	(+/- 30 fps)
DEA 2017	Rifle	.223 Remington Tactical Bonded Soft Point	62	2600	792	(+/- 50 fps)
DEA 2017	Rifle	5.56 x 45mm M855 (Green Tip)	62	3100	945	(+/- 50 fps)
DEA 2017	Rifle	7.62 x 39mm Mild Steel Core	123	2400	731	(+/- 50 fps)
DEA 2017	Rifle	7.62 mm FMJ, Steel Jacketed Bullets (M80)	147	2750	838	(+/- 50 fps)
DEA 2017	Rifle	.308 Winchester PSPB Core-Lokt Ultra Bonded	150	2600	792	(+/- 50 fps)
